12VDC 200Amp Magnetic Contactor Relay

Product Description ASW200 12V/24V/36V/48V/60V/72V/84V/120VDC 200A Use d For Elect ri c Vehicles And Engineering Machinery AOKAI DC Contactor ASW200 can continuously work for 200 amperes. The rated coil voltage of ASW200 can be 12VDC, 24VDC, 36VDC, 48VDC, 60VDC, 72VDC, 120VDC etc. The ASW200...

Send Inquiry
Product Details


Product Description
ASW200 12V/24V/36V/48V/60V/72V/84V/120VDC 200A Used For Electric Vehicles And Engineering Machinery AOKAI DC Contactor
 ASW200 can continuously work for 200 amperes. The rated coil voltage of ASW200 can be 12VDC, 24VDC, 36VDC, 48VDC, 60VDC, 72VDC, 120VDC etc. The ASW200 features 200A contact switching capability. Its contact form usually will be SPST-NO or SPST-NC or SPDT-change over contact arrangement. The coil power dissipation is 11-15Watt. The rated voltage of contact circuit is 60VDC. When in the cold state at 20±5℃, the operating voltage pick-up is not above 70% of rated coil volt, and the operating voltage release is 10%-40% of rated coil volt. The maximum operating time at rated voltage is 40ms. The ASW200 is single pole single throw.

The ASW200 is widely used in electric vehicles, telecommunication equipment, engineering machinery, car batteries, electric forklift trucks, trains, ships, electronic control systems such as UPS.

Brand: AK/AOKAI
Name: DC Contactor
Model: ASW200 / SW180
Rated Voltage: DC12V/24V/36V/48V/60V/72V/84V/120V etc.
Rated Current: 200A
Dimension: 62*45.5*123 (mm)
Weight: About 730g


SPECIFICATION

Coil Rated Voltage

DC12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V etc.

 Main Circuit Rated Current (A)

200A

 Main Circuit Contact Voltage Drop (Load:100A)

 ≤80mV

 Under (20±5)℃, Cooling Pull-in Voltage

≤70%

 Under (20±5)℃, Cooling Drop-out Voltage

≥5%, ≤40%

 Acceptable Fluctuation Range of Coil Voltage

±20%

 Pull-in Time (N/O Contacts to Close)

≤30ms

 Drop-out Time (N/O Contacts to Open)

≤20ms

 The Max Disconnecting Time of Contacts

≤5ms

 Insulation Resistance

≥50MΩ

 Dielectric Strength

50Hz/60Hz 1000VAC/1min

 Overload Current

≤7Ie, ≤1s

 Coil Power Consumption (W)

≤12.0W

 Electrical Life

20,000 times

 Mechanical Life

300 Thousand times

 Working Mode

Continuous or Intermittent

 Contact Form

1 NO or 1 NC

 Contact Material

AgCdO / AgCuO

 Auxiliary Contact Rated Load (Optional Parts)

2A/48VDC, 5A/24VDC

 Technical Standard

GB14048.4-2010

USAGE ENVIRONMENT


     Altitude

≤2Km

Ambient Temperature

-25~+55℃

International Protection Grade

IP50

Installation Type

III

Way to Install

Any

Vibration

2.5g (5~50)Hz

Impact

50g,11ms (Half-Sine Wave)

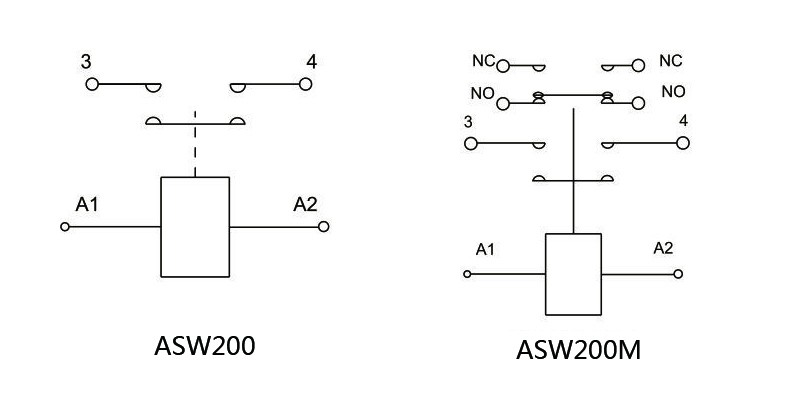

SCHEMATIC DIAGRAM


INSTALLATION DIAGRAM

Aokai Electric is your best source for the high quality 1no 36v dc uninterruptible power supply parts relay with CE certification. We have been one of the largest such manufacturers and suppliers in China since our establishment in 2008. Welcome to contact our factory for the products.
