12VDC 400A Switch Magnetic Type Contactor Relay SW88-1

Product Description ASW400 12V/24V/36V/48V/60V/72V/84V/120VDC 400A Use d For Elect ri c Vehicles And Engineering Machinery AOKAI DC Contactor The ASW400 has M10 stud main terminals and 6.3mm spade coil connections. The upper two spades is positive pole. The lower two spade is negative pole. The...

Send Inquiry
Product Details

Product Description

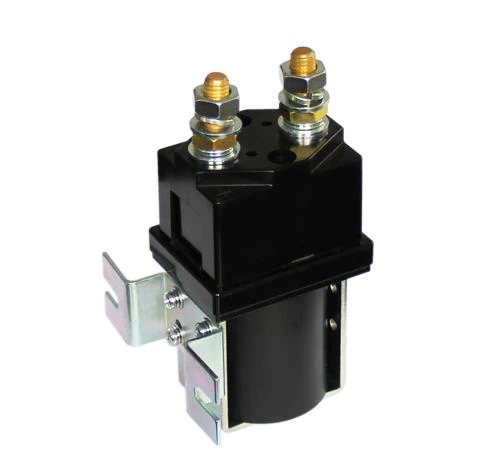

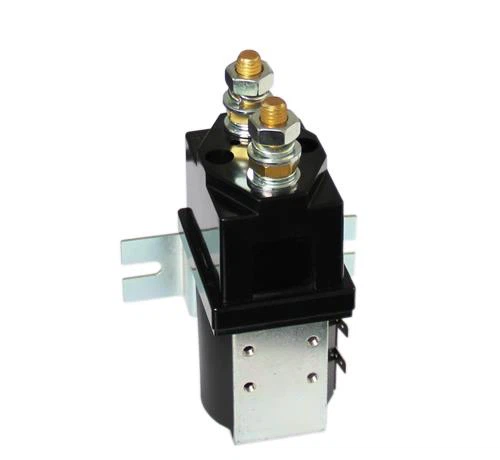

 ASW400 12V/24V/36V/48V/60V/72V/84V/120VDC 400A Used For Electric Vehicles And Engineering Machinery AOKAI DC Contactor

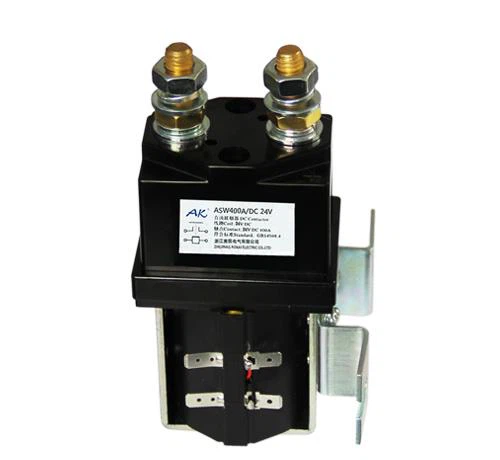

 The ASW400 has M10 stud main terminals and 6.3mm spade coil connections. The upper two spades is positive pole. The lower two spade is negative pole. The coil can be connected whether left or right. It can be mounted via M5 tapped holes or mounting brackets – either supplied fitted, or as separate items. Mounting can be horizontal or vertical, when vertical the M10 contact studs should point upwards. If the requirement is for downwards orientation we can adjust the contactor to compensate for this. 6.3*0.8mm auxiliary contact can be provided for testing the circuit working state if required. The coil power is 13-16W. Contact volt drop of main contact at 100A is not above 80mV.

ASW400 can be applied in city sanitation truck like road wrecker and garbage truck.

Brand: AK/AOKAI
Name: DC Contactor
Model: ASW400 / SW200
Rated Voltage: DC12V/24V/36V/48V/60V/72V/84V/120V etc.
Rated Current: 400A
Dimension: 73*57*156 (mm)
Weight: About 1330g


SPECIFICATION

Coil Rated Voltage

DC12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V etc.

 Main Circuit Rated Current (A)

400A

 Main Circuit Contact Voltage Drop (Load:100A)

 ≤80mV

 Under (20±5)℃, Cooling Pull-in Voltage

≤70%

 Under (20±5)℃, Cooling Drop-out Voltage

≥5%, ≤40%

 Acceptable Fluctuation Range of Coil Voltage

±20%

 Pull-in Time (N/O Contacts to Close)

≤30ms

 Drop-out Time (N/O Contacts to Open)

≤20ms

 The Max Disconnecting Time of Contacts

≤5ms

 Insulation Resistance

≥50MΩ

 Dielectric Strength

50Hz/60Hz 1000VAC/1min

 Overload Current

≤7Ie, ≤1s

 Coil Power Consumption (W)

≤15.0W

 Electrical Life

20,000 times

 Mechanical Life

300 Thousand times

 Working Mode

Continuous or Intermittent

 Contact Form

1 NO or 1 NC

 Contact Material

AgCdO / AgCuO

 Auxiliary Contact Rated Load (Optional Parts)

2A/48VDC, 5A/24VDC

 Technical Standard

GB14048.4-2010

USAGE ENVIRONMENT


     Altitude

≤2Km

Ambient Temperature

-25~+55℃

International Protection Grade

IP50

Installation Type

III

Way to Install

Any

Vibration

2.5g (5~50)Hz

Impact

50g,11ms (Half-Sine Wave)

SCHEMATIC DIAGRAM


INSTALLATION DIAGRAM
