ASW200M 12V/24V/36V/48V/60V/72V/84V/120VDC 200A Magnetic Latching Energy Saving AOKAI DC Contactor
ASW200M is a magnetic latching DC contactor. The difference between magnetic latching DC contactor and magnetic DC contactor is the coil. Thus their power supply and pulse direction are also different. About the magnetic latching DC contactor, when its contact is closed, the permanent magnet will keep its action state, and the action coil will drop out. Then get the energy saving purpose.

Brand: AK/AOKAI
Name: DC Contactor
Model: ASW200M
Rated Voltage: DC12V/24V/36V/48V/60V/72V/84V/120V etc.
Rated Current: 200A
Dimension: 62*45.5*123 (mm)
Weight: About 730g


SPECIFICATION


     Coil Rated Voltage

DC12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V etc.

 Main Circuit Rated Current (A)

200A

 Main Circuit Contact Voltage Drop (Load:100A)

 ≤80mV

 Under (20±5)℃, Cooling Pull-in Voltage

≤70%

 Under (20±5)℃, Cooling Drop-out Voltage

≥5%, ≤40%

 Acceptable Fluctuation Range of Coil Voltage

±20%

 Pull-in Time (N/O Contacts to Close)

≤30ms

 Drop-out Time (N/O Contacts to Open)

≤20ms

 The Max Disconnecting Time of Contacts

≤5ms

 Insulation Resistance

≥50MΩ

 Dielectric Strength

50Hz/60Hz 1000VAC/1min

 Overload Current

≤7Ie, ≤1s

 Coil Power Consumption (W)

≤12.0W

 Electrical Life

20,000 times

 Mechanical Life

300 Thousand times

 Working Mode

Continuous or Intermittent

 Contact Form

1 NO or 1 NC

 Contact Material

AgCdO / AgCuO

 Auxiliary Contact Rated Load (Optional Parts)

2A/48VDC, 5A/24VDC

 Technical Standard

GB14048.4-2010

USAGE ENVIRONMENT


     Altitude

≤2Km

Ambient Temperature

-25~+55℃

International Protection Grade

IP50

Installation Type

III

Way to Install

Any

Vibration

2.5g (5~50)Hz

Impact

50g,11ms (Half-Sine Wave)

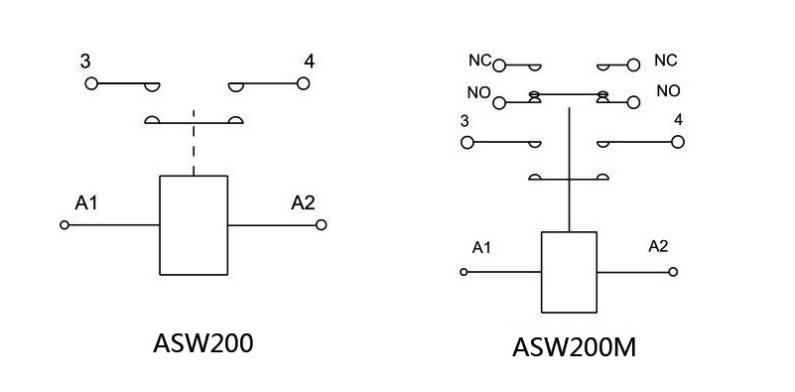

SCHEMATIC DIAGRAM


INSTALLATION DIAGRAM
