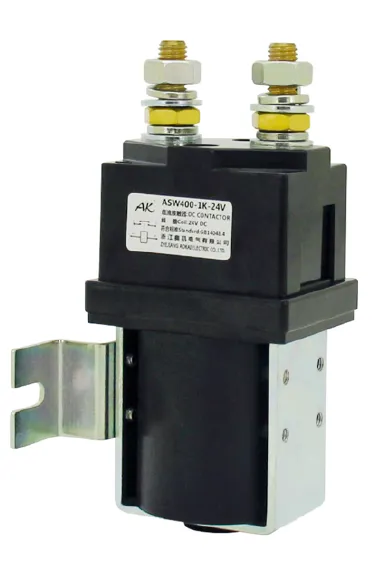

ASW400M Latching Type 400A coil 12V, 24V, 36V, 48V, 60V DC Contactor
|
Brand: AK/AOKAI Name: DC Contactor Model: ASW400M Load Terminal: M10 External Thread |
|
SPECIFICATION
|
Coil Rated Voltage |
DC12V, 24V, 36V, 48V, 60V |
|
Main Circuit Rated Current (A) |
400A |
|
Main Circuit Contact Voltage Drop (Load:400A) |
≤80mV |
|
Under (20±5)℃, Cooling Pull-in Voltage |
≤70% |
|
Under (20±5)℃, Cooling Drop-out Voltage |
≥5%Us, ≤40%Us |
|
Acceptable Fluctuation Range of Coil Voltage |
±20% |
|
Pull-in Time (N/O Contacts to Close) |
≤30ms |
|
Drop-out Time (N/O Contacts to Open) |
≤30ms |
|
The Max Disconnecting Time of Contacts |
≤5ms |
|
Insulation Resistance |
≥50MΩ |
|
Dielectric Strength |
50Hz/60Hz 1000VAC/1min |
|
Overload Current |
≤7Ie, ≤1s |
|
Coil Power Consumption (W) |
≤45.0W |
|
Electrical Life |
≥6,000 times |
|
Mechanical Life |
≥100,000 times |
|
Working Mode |
Continuous |
|
Contact Form |
1 NO or Latching |
|
Contact Material |
AgSnO/Cu or AgCuO / Cu |
|
Auxiliary Contact Rated Load (Optional Parts) |
2A/48VDC, 5A/24VDC |
|
Technical Standard |
GB14048.4-2010 |
USAGE ENVIRONMENT
Altitude |
≤2Km |
Ambient Temperature |
-25~+55℃ |
|
International Protection Grade |
IP50 |
Installation Type |
III |
|
Way to Install |
Any |
Vibration |
2.5g (5~50)Hz |
|
Impact |
50g,11ms (Half-Sine Wave) |
||

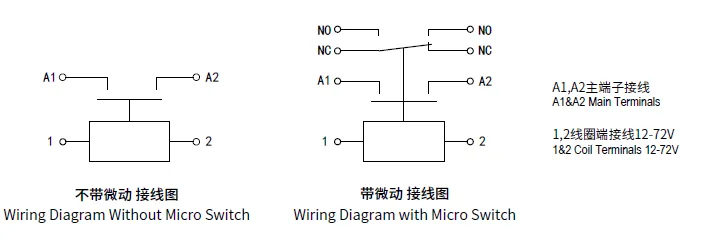

SCHEMATIC DIAGRAM

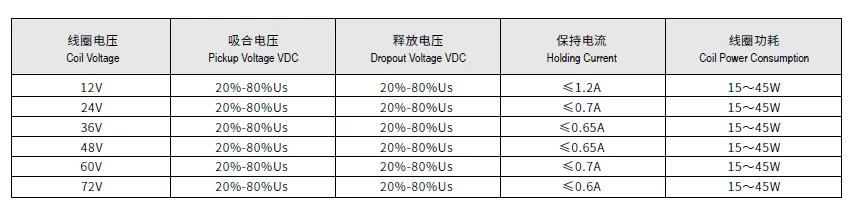

COIL DATA

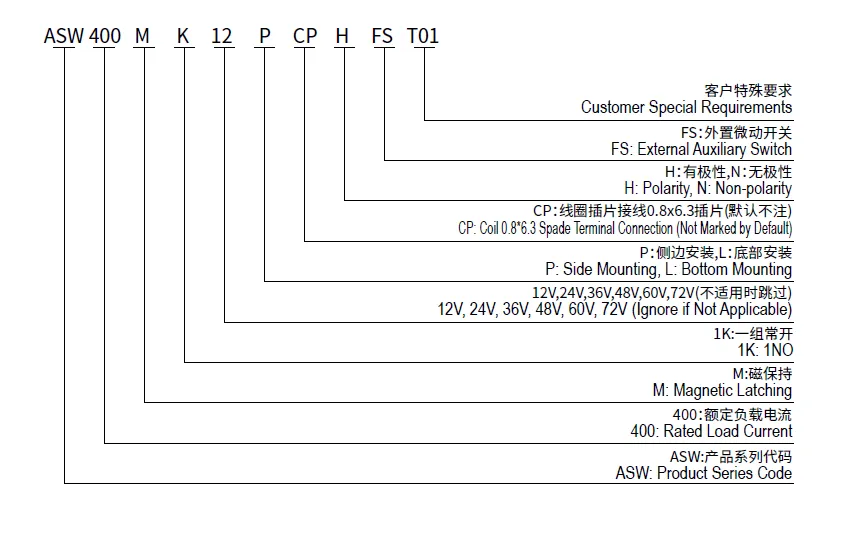

MODEL CODE

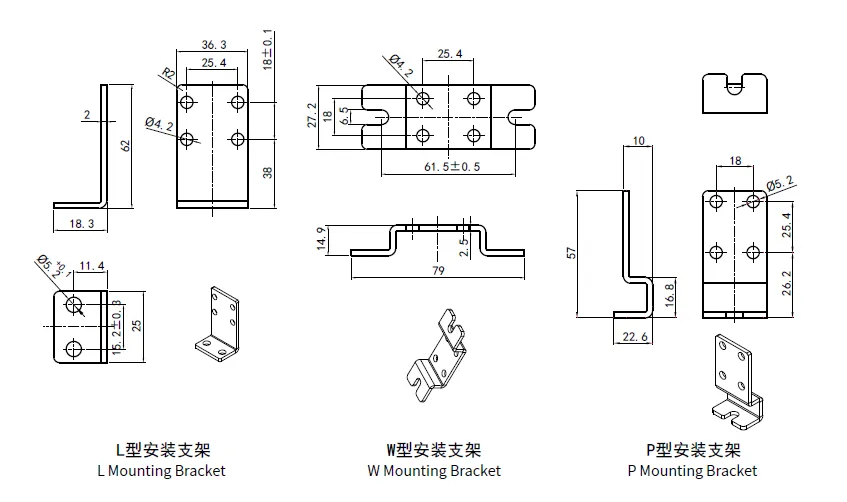

INSTALLATION DIAGRAM
