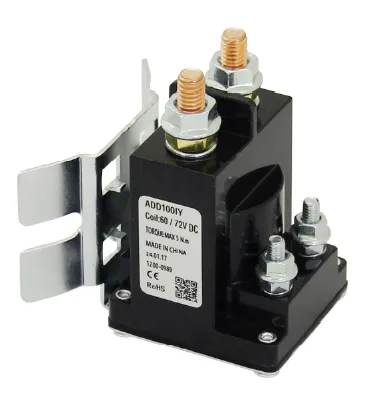

Electric Forklift DC Motor Contactor 100Amps
Contact Arrangement: 1NO
Working Duty: Intermittent 100A load
Insulation Resistance: 50MΩ (After Electrical Life)
IP protection level: IP67
Load Terminal: M6/M8 External Thread
Vibration: 3.5G, 10-200Hz, 1/2 Sine Wave (Power On)
Shock: 20G (Power On)
Relative Humidity: 5%-95% RH
Dimension: 56*54*64mm
Electrical Life: 30,000 cycles (80V/100A)
Load Wiring Torque: 6 - 8N.m
Features
◪ Intermittent 100A load.
◪ It has one set of normally open contacts.
◪ Coil power consumption ≤27W.
◪ The insulation resistance is up to 100MΩ (1,000VDC), the withstand voltage
between the contact and the coil is 1.5kV.
◪ IP protection level: IP67.
◪ Compliant with IEC 60664-1, GB/T14048.1 and GB/T1048.4 requirements.
◪ Compliant with RoHS (2015/863/EU), REACH (1907/2006/EC) requirements.
◪ Safety certificate: CE, RoHS
Specifications:
|
Performance Parameters (at 23℃) |
||
|
Contact Arrangement |
1NO |
|
|
Contact Resistance |
≤5mΩ |
|
|
Contact Voltage Drop |
≤80mV (at 40A) |
|
|
Overload Current |
≤7le, ≯1s |
|
|
Temperature Range |
-40℃~55℃ |
|
|
Load Terminal |
M6/M8 External Thread |
|
|
Humidity |
5%~95%RH |
|
|
External Dimension |
57mm*58mm*66mm |
|
|
Operating Duty |
Intermittent |
|
|
Electrical Durability with Load (Resistive) |
≥30,000 Times |
|
|
Load Wiring Torque |
6-8N.m |
|
|
Pull-In Voltage |
≤70% Us |
|
|
Drop-Out Voltage |
5%-40% Us |
|
|
Contact Bounce Period |
≤5ms |
|
|
Pull-In Time |
≤30ms |
|
|
Drop-Out Time |
≤30ms |
|
|
Dielectric Strength |
Between Main Contacts |
50Hz/60Hz 1,500VAC/1min |
|
Between Main Contacts and Coil |
50Hz/60Hz 1,500VAC/1min |
|
|
Insulation |
Initial State |
100MΩ 1min |
|
After Electrical Life |
50MΩ 1min |
|
|
Shock |
Stability |
20g (Power On) |
|
Strength |
50g |
|
|
Vibration |
3.5g, 10~200Hz, 1/2 Sine Wave (Power On) |
|
|
Mechanical Durability |
≥300,000 Times |
|
|
ADC300I Coil Parameters |
||||
|
Coil Voltage |
Pull-In Voltage |
Drop-Out Voltage |
Coil Resistance |
Coil Power Consumption |
|
12V |
≤70%Us |
5%-40%Us |
5.5Ω±10% |
26W±10% |
|
24V |
≤70%Us |
5%-40%Us |
22Ω±10% |
26W±10% |
|
36V |
≤70%Us |
5%-40%Us |
50Ω±10% |
26W±10% |
|
48V |
≤70%Us |
5%-40%Us |
90Ω±10% |
26W±10% |
|
60V |
≤70%Us |
5%-40%Us |
135Ω±10% |
26W±10% |
|
72V |
≤70%Us |
5%-40%Us |
200Ω±10% |
26W±10% |
Product Introduction:
This series DC Contactor is widely used in electromobiles, electric forklifts, electric winches, engineering machinery, etc.
Model Coding:
Wiring Diagram:
Outline Installation Dimension Drawing:
Note: These datas are only for customer selection reference, AOKAI has tried the best to ensure the accuracy of the information. Product specifications and parameters may be changed due to product improvement etc., they may be inconsistent because of not updated in time. For the specific parameters and performance of each product, please refer to the samples provided by AOKAI and the corresponding signed and controlled specification.
