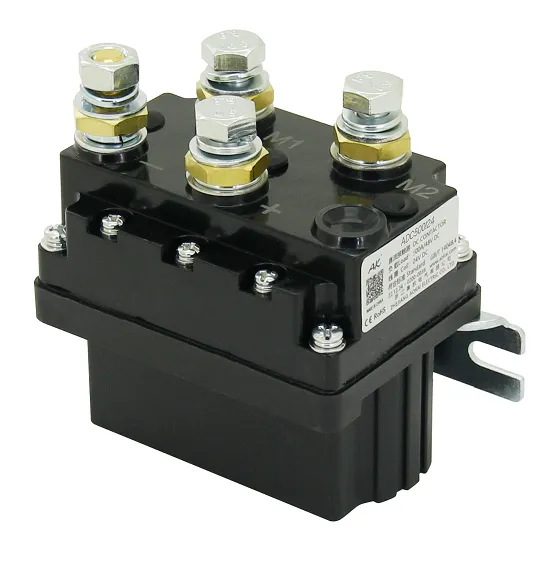

Aokai Electric is your best source for the high quality 500a dc reversing contactor adc500i with CE certification. We have been one of the largest such manufacturers and suppliers in China since our establishment in 2008. Welcome to contact our factory for the products.
ADC400-I 12VDC 2NO AND 2NC USING IN ELECTRIC WINCH FORKLIFT POWER SUPPLY SYSTEM DC CONTACTOR
SPECIFICATIONS
| Coil Rated Voltage | DC12V / 24VDC |
| Main Circuit Rated Current (A) | 500A |
| Main Circuit Contact Voltage Drop Of (load:100A) |
≤80mV (at 120A) |
| Under (20±5℃), Cooling Pull-in Voltage | ≤70% Us |
| Under (20±5℃), Cooling Drop-out Voltage | 5%-40%Us |
| Load Terminal | M8 |
| Pull-in Time | ≤30ms |
| Drop-out Time | ≤30ms |
| Contact Opening Max. Bounce Period | ≤5ms |
| Insulation Resistance | 100MΩ (1000VDC) |
| Dielectric Strength | 50Hz/60Hz 1500VAC/1min |
| Overload Current | ≤4Ie, ≤1s |
| Coil Consumption (W) | ≤24W |
| Electrical Life | 20,000 times |
| Mechenical Life | 100,000 Times |
| Working Duty | Intermittent |
| Contacts Type | 2NO and 2NC |
| Contact Material | AgSnO/Cu or AgCuO/Cu |
| Load Wiring Torque | 8-10N.m |
| Technical Standard | IEC60664-1; GB/T14048.1 AND 14048.4 |
USAGE ENVIRONMENT
| Altitude | ≤2Km | Ambient temperature | -40~+85℃ |
| International protection | IP67 | Installation type | III |
| Way to install | Any | Vibration |
3.5g, (10-200)Hz 1/2 sine wave (power on) |
| Impact | 50g,11ms(Half-Sine Wave) | Coil Wiring Torque | 0.5-0.8 N.m |
MODEL CODING
SCHEMATIC DIAGRAM

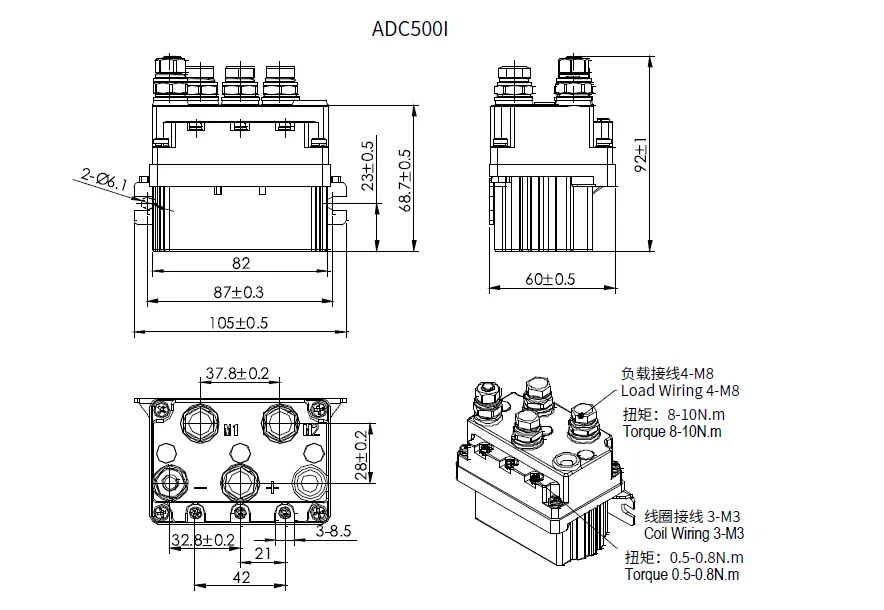

OUTLINE INSTALLATION DIMENSION DRAWING
