Product Description

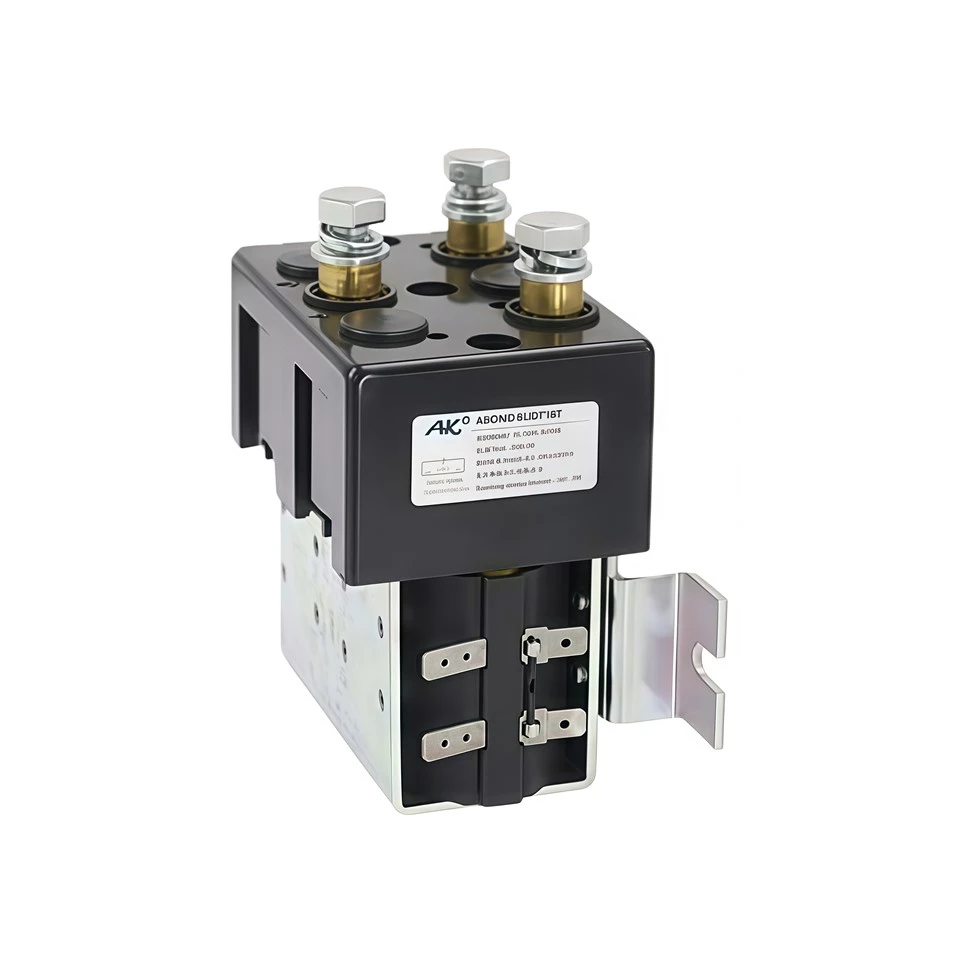

ADC200-2T 12V/24V/36V/48V/60V/72V/84V/120VDC 200A Used in Electric Mounted Crane AOKAI DC Contactor
ADC200-2T contactor is applicable for electric control system of electromobile, motor forklift truck, electric vehicle, electric winch, grab, vehicle air conditioner, communication power supply, UPS (uninterruptible power system) and so on. The product design meet GB/T14048.1 "Low Voltage Switchgear and Control Equipment General" Mechanical Department standards JB2286-78 "Basic Technical condition of Traction Electrical Device" JB3974-85 " DC Electrical device of Battery Vehicle Basic Technical Conditions" and the Ministry of Posts YD/T585-92 " Distribution Equipment Communication Function" YD/T512-92 "Telegram Power Equipment Technical Conditions" standard.
| Brand: AK/AOKAI Name: DC Reversing Contactor Model: ADC200-2T / DC182 Rated Voltage: DC12V/24V/36V/48V/60V/72V/84V/120V etc. Rated Current: 200A Dimension: 71.5*109*127 (mm)Weight: About 1750g |
|
SPECIFICATION
Coil Rated Voltage | DC12V, 24V, 36V, 48V, 60V, 72V, 84V, 120V etc. |
Main Circuit Rated Current (A) | 200A |
Main Circuit Contact Voltage Drop (Load:100A) | ≤80mV |
Under (20±5)℃ , Cooling Pull-in Voltage | ≤70% |
Under (20±5)℃ , Cooling Drop-out Voltage | ≥5%, ≤40% |
Acceptable Fluctuation Range of Coil Voltage | ±20% |
Pull-in Time (N/O Contacts to Close) | ≤30ms |
Drop-out Time (N/O Contacts to Open) | ≤20ms |
The Max Disconnecting Time of Contacts | ≤5ms |
Insulation Resistance | ≥50MΩ |
Dielectric Strength | 50Hz/60Hz 1000VAC/1min |
Overload Current | ≤7Ie, ≤1s |
Coil Power Consumption (W) | ≤24.0W |
Electrical Life | 20,000 times |
Mechanical Life | 300 Thousand times |
Working Mode | Continuous |
Contact Form | 2 NO and 2 NC |
Contact Material | AgCdO / AgCuO |
Auxiliary Contact Rated Load (Optional Parts) | 2A/48VDC, 5A/24VDC |
Technical Standard | GB14048.4-2010 |
USAGE ENVIRONMENT
Altitude | ≤2Km | Ambient Temperature | -25~+55℃ |
International Protection Grade | IP50 | Installation Type | III |
Way to Install | Any | Vibration | 2.5g (5~50)Hz |
Impact | 50g,11ms (Half-Sine Wave) | ||
SCHEMATIC DIAGRAM
